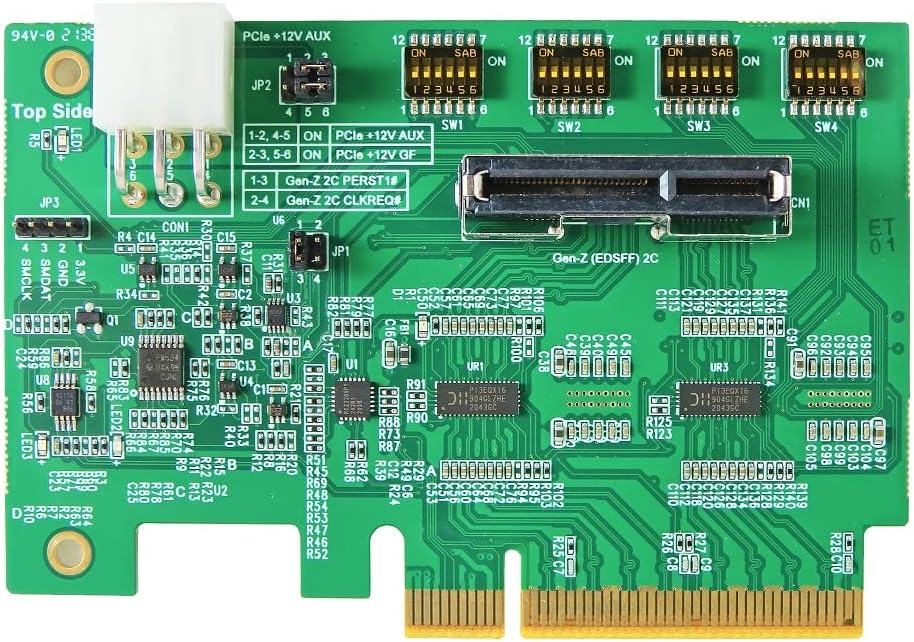

PCIe Gen4 x8 ReDriver for Gen-Z 2C EDSFF AIC: High-Speed Data Transfer

The PCIe (Peripheral Component Interconnect Express) x4 Gen4 interface is a high-speed interface standard for connecting devices to a computer's motherboard. It is the fourth generation of the PCIe interface and supports data transfer speeds of up to 16 Gbps (gigabits per second) per lane, which is a significant increase over the previous generation (PCIe x4 Gen3) which supports 8 Gbps per lane. One of the main advantages of the PCIe x4 Gen4 interface is its high-speed data transfer capability, which allows for faster data transfer between devices such as solid-state drives (SSDs), graphics cards, and network adapters. This allows for improved performance in tasks such as gaming, video editing, and data transfer. Another advantage of the PCIe x4 Gen4 interface is its backwards compatibility with older PCIe generations, which means that devices using earlier versions of the PCIe interface can still be used with a PCIe x4 Gen4 interface. This is achieved by using a "bridge" or "adapter" that allows the older device to connect to the newer interface.

• It's an integrated circuit that converts the PCIe x8 Gen4 to a 2-lane Gen-Z 2C interface. It supports the PCIe x8 Gen4 speeds of up to 8 GB/s. The IC is designed to support both back-to-back and edge-to-edge FET operations.
• The IC uses a multiplexer topology for input/output signals (IO) and power supply voltages (VCC). The multiplexer provides additional flexibility in routing signals from the host side to the core side and vice versa.
• It reduces wire counts and simplifies layout design, resulting in improved system performance and lower power consumption simultaneously.
• It also provides thermal shutdown protection and fault alert along with back-to-back (B2B) FET operation.
• The PCIe x4 Gen4 interface is also designed to be power efficient, which helps to reduce the power consumption of devices that use it. This can be particularly beneficial in mobile devices such as laptops, where power consumption is a critical factor.
