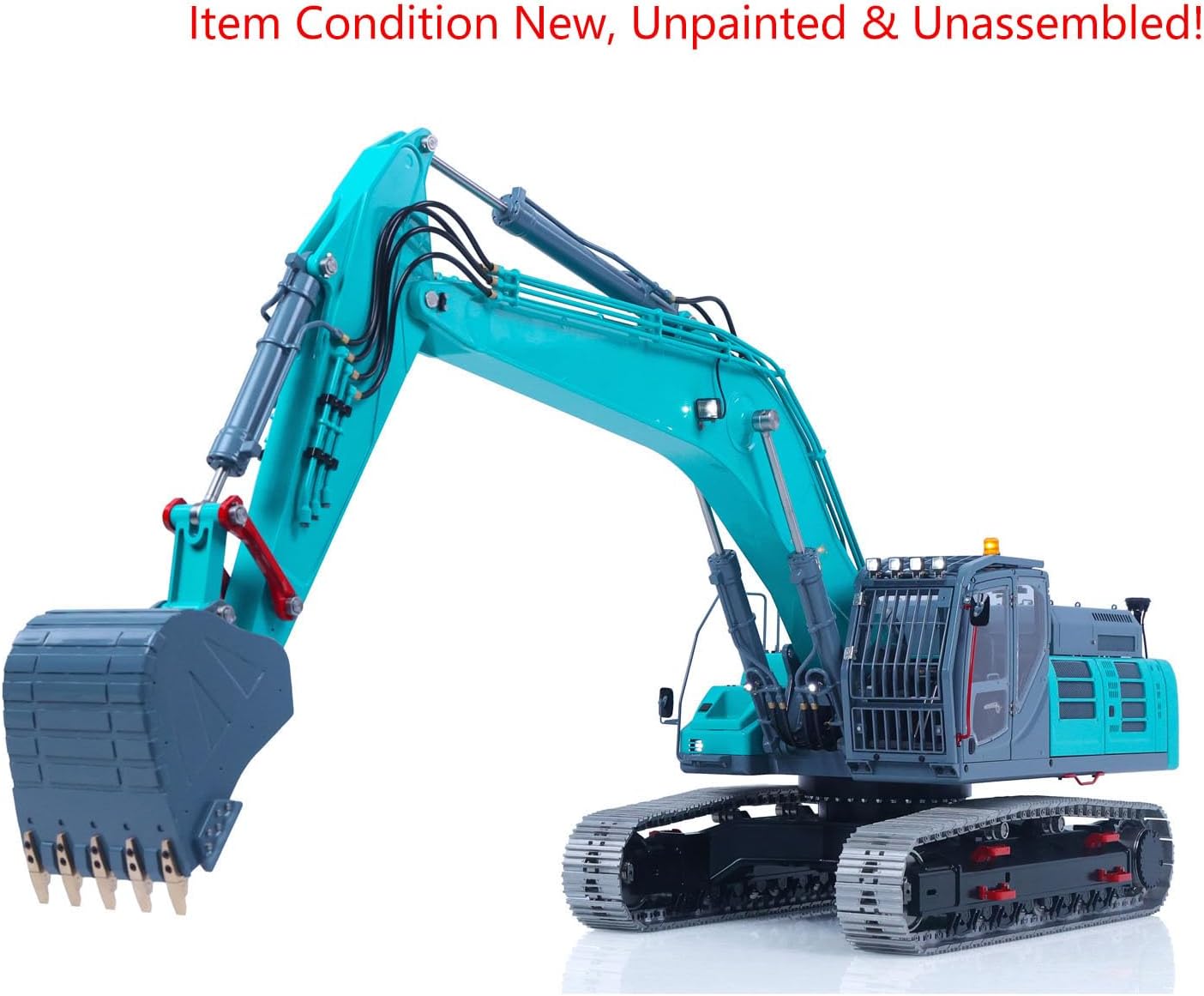

Sk500Lc LESU 1/14 Metal RC Hydraulic Excavator Radio Control Digger Model Kit 6Ch Valve CNC Body Construction Vehicles Lights Hobby Grade Model for Ages 14+

#Specification: Brand: Lesu Item Condition: New, Unpainted And Unassembled Scale: 1/14 Material: Metal, Plastic Wheelbase/Mm：316 Net Weight/Kg: 18.6 Product Size/Mm：580*443*255 (L*W*H) Id: Ls-Ba-B0018-Mtrack-Kit #The Package Includes: 1/14 Rc Hydraulic Excavator Model Parts （The Tracks Are Metallic Color) Motor Servo Esc Hydraulic System Light System #The Package Does Not Include: Sound System Remote Controller And Receiver Battery Charger Hydraulic Oil #Technical Specifications: Cab Top Height From Ground/Mm: 251.9 Maximum Unloading Height/Mm: 537.7 Height Of Working Platform Bottom From Ground/Mm: 96 Maximum Digging Depth/Mm: 549.9 Total Length Of Tracks/Mm: 390.5 Maximum Digging Radius/Mm: 853 Distance Between Center Of Drive Wheel And Guide Wheel On Track/Mm: 316 Maximum Ground Digging Radius/Mm: 534.5 Bottom Height Of X Frame From Ground/Mm: 37.9 Track Gauge/Mm: 196 Minimum Swing Radius/Mm: 320.9 Track Width/Mm: 43 Maximum Digging Height/Mm: 751.1 Overall Width Of Excavator/Mm: 256 Rotation Speed (R/Min): 10 Travel Drive Wheel Speed (R/Min): 42 Rotation Drive Reduction Ratio: 1:20 Travel Drive Reduction Ratio: 1:370 Rotation Motor Speed (R/Min): 1500 Travel Motor Speed (R/Min): 1400 Maximum Pressure Of Hydraulic Workstation/Mpa: 4 Number Of Shifts For Reversing Valve: 6 Rated Pressure Of Hydraulic Workstation/Mpa: 3 Number Of Hydraulic Pumps: 1

• The entire body is manufactured with CNC precision machining, stainless steel laser welding and other processes, with 95% metal material for the body shell.
• This excavator is equipped with a 6-way high-precision metal directional control valve, 3 of which are reserved oil circuits for upgraded attachments; it is also paired with a powerful hydraulic oil pump with a rated pressure of 3MPA. The new metal hydraulic relief valve ensures safer operation of the excavator.
• Equipped with a lighting system including spotlights and warning lights, simulating night working mode; Contact us for upgrades of sound module and smoke generator.
• The cab is fitted with a simulated electronic display for real-time voltage monitoring, plus a one-click switch lever for effortless operation. #If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
